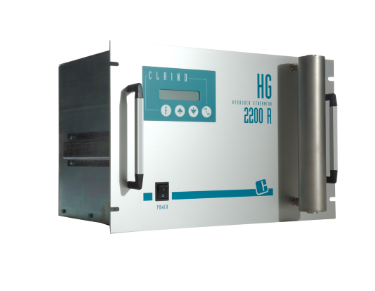

HG 2200 R
Hydrogen Generator
DESCRIPTION
The HG 2200 R is dedicated to THC and fume monitoring analyzers. It features a purity greater than 99.999%, with a maximum o2 of <.1ppm when used with additional purifiers. A removable external water tank makes for easy cleaning and water changes. A continuous water loading pump is available.
STANDARD FEATURES
-
UHP Purity better than 99.999%
-
Outlet pressure between 1 - 4 bar can be controlled via the included keyboard. Maximum O2 content .1ppm when used with additional purifier. 6 bar available on demand.
-
Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
OPTIONS (Add to main Cat# when purchasing)
SPECS
| Instrument Name | HG 2200 R | |
| Flow Rate |
200 L/min |
|
| Power Rating | 100 VA | |
| Noise Level |
< 46 dB |
|
| Electrical Supply | 115/230 V 50-60 Hz |
|
| Operating Temperature |
40 °F - 104 °F (5°C - 40°C) |
|
| H20 Supply |
Demineralized h20 ≤ 5 µS/cm2 (0.2 MΩ) @ 20 °C |
|
| Consumables |
dryer with molecular sieve |
|
| Dimensions |
Height: 12.2" (31cm) Width: 18.9" (48cm) Depth: 14.9" (38cm) |
|
| Weight |
44 lbs (20kg) |
|
| Warranty | 1 year | |
