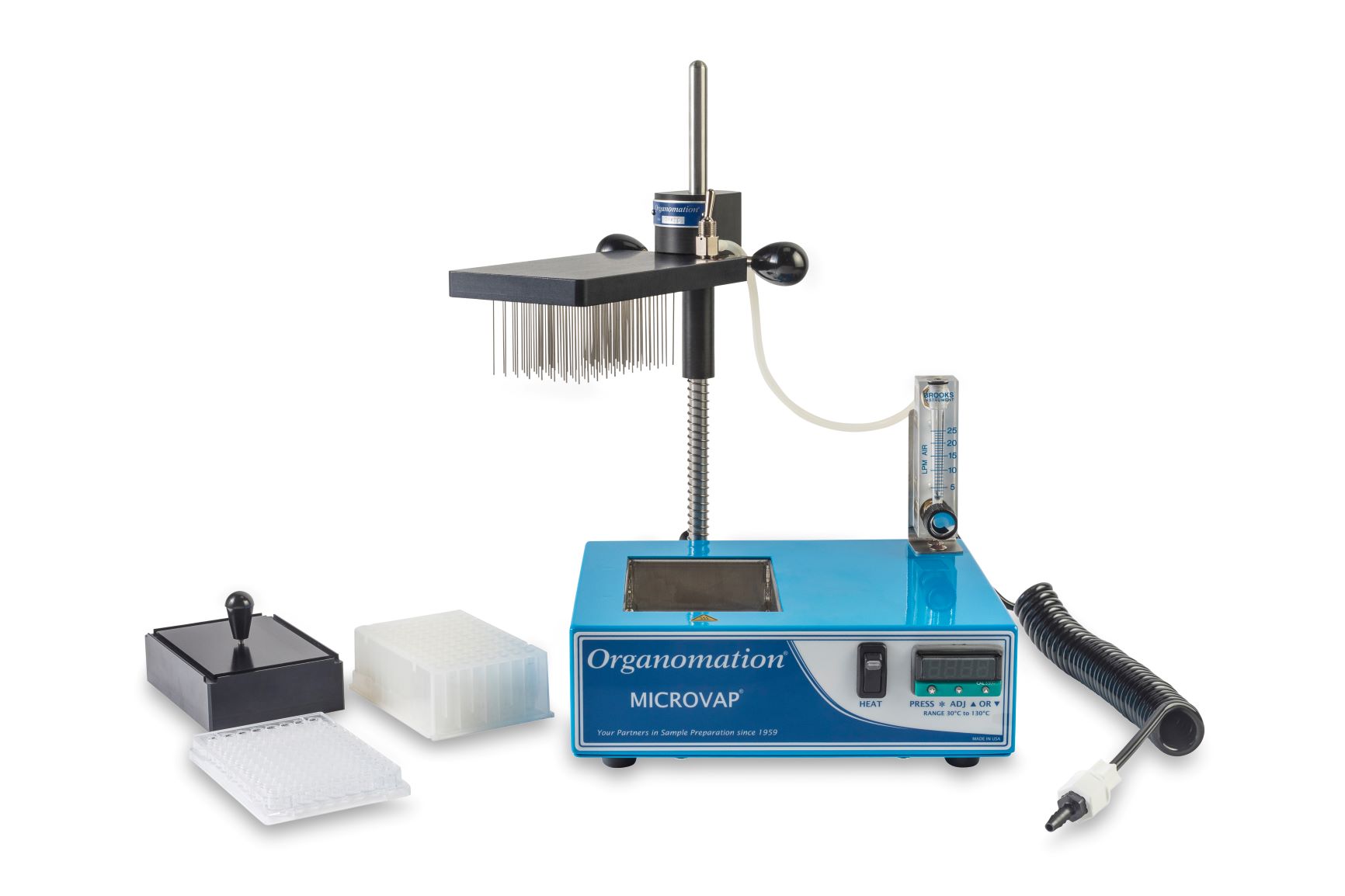

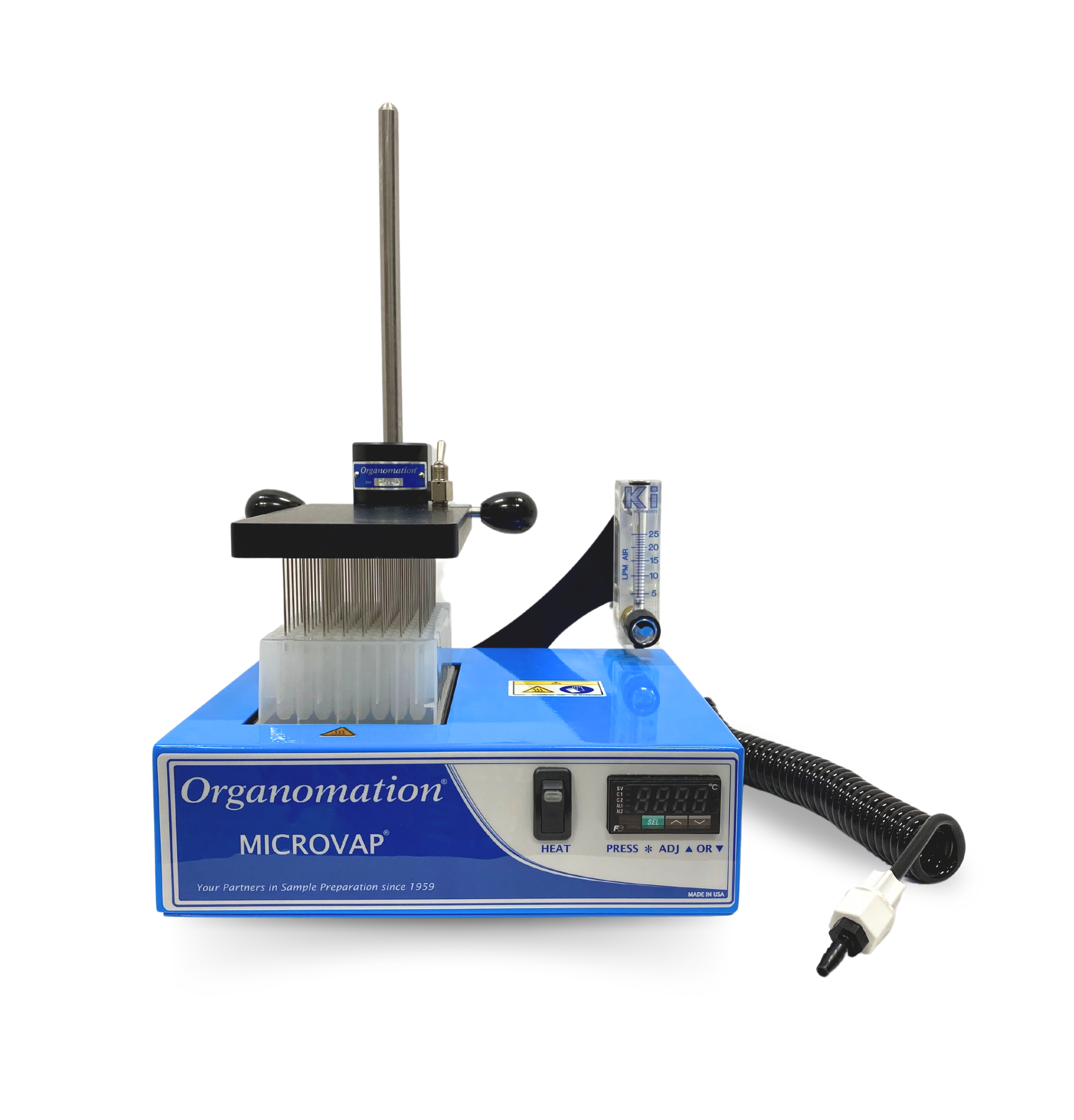

MICROVAP
Microplate Evaporator
DESCRIPTION
The single plate MICROVAP microplate evaporator is one of the most compact sample concentrators available, and it continues to meet the needs of the life science and pharmaceutical industries. This microplate concentrator is ideal for laboratories needing efficient solutions for the gentle evaporation of high capacity, low volume samples in 96-well microplates and 96-well deep plates. The gas delivery manifold offers continuous evaporation via 2-inch x 19-gauge stainless steel needles.
In order to evaporate solvents with a wide range of boiling points effectively, the digital temperature controls and solid aluminum heating unit provide uniform heat from room temperature up to 130°C with temperature accuracy of +/- 2°C. The newly redesigned heating unit allows excellent heat stability for low temperature applications. A version without heat is available for evaporations that will be performed at ambient temperatures.
Discover our discontinued Single Plate MICROVAP model here for a discount. Available while supplies last.
Compact Design
The MICROVAP has the smallest footprint of all of Organomation’s nitrogen evaporators
Ease of Use
Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
Precise
Digital controls allow exact temperature regulation
Versatility
Easily concentrate 15 or 24 tube samples using a conversion kit
STANDARD FEATURES
-
Adjustable flow meter
-
Digital temperature control
-
High temperature limit switch
-
2-inch x 19-gauge needles
-
Nitrogen filter
-
Anodized aluminum dry block
OPTIONS (Add to main Cat# when purchasing)
-
230v wiring harness (Option Code -2), Cat# 11801-2
-
Z-Purge/positive pressure purge case (Option Code -Z), Cat# 11801-Z
-

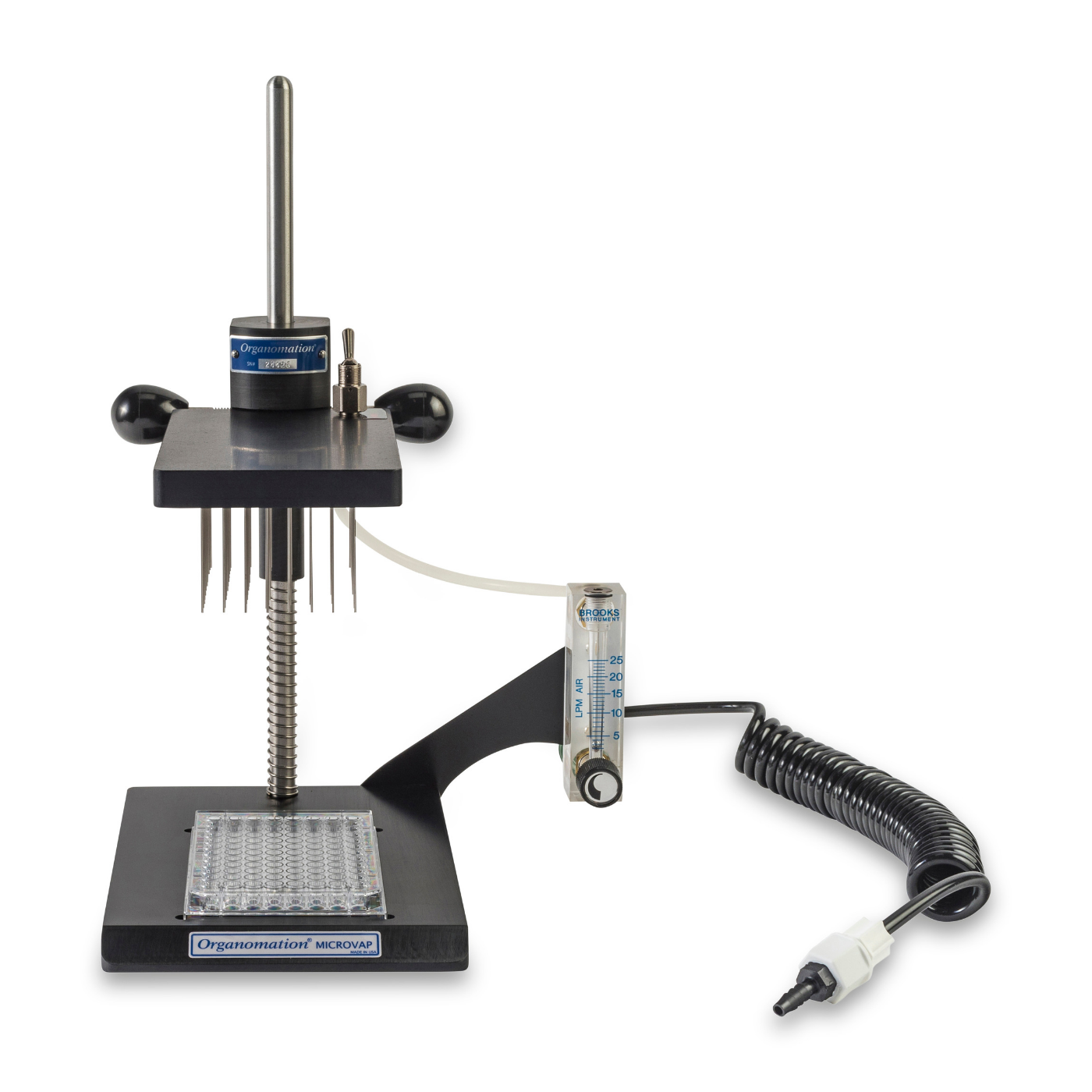

Manifold and stand only; no heating platform (Option Code -O), Cat# 11801-O
-
Acid resistant coating on instrument and needles (Option Code -RT), Cat# 11801-RT
SPECS
| Instrumental Name | Single Plate MICROVAP | |
| Heater Type | Dry block | None |
| Instrumental Catalog Number | 11801 | 11801-O |
| Number of Sample Positions | 1 | 1 |
| Overall Dimension (w x d x h) | 10.0 x 13.0 x 18.0 in 25.4 x 33.0 x 45.7 cm |
10.5 x 12.5 x 15.0 in 26.7 x 31.8 x 38.1 cm |
| Gas Manifold Layout | 8 x 12 Array | 8 x 12 Array |
| Center to Center Spacing Between Positions |
0.354 in 9.0 mm |
0.354 in 9.0 mm |
| Microplate Dimensions (w x d) |
3.375 x 5.0 in 8.5 x 13 cm |
3.375 x 5.0 in 8.5 x 13 cm |
| Gas Flow Control | Single toggle valve | Single toggle valve |
| Gas Flow Meter Range | 0-25 L/min | 0-25 L/min |
| Stainless Steel Needles (Length & Gauge) | 2.0 in x 19 ga 51 mm x 19 ga |
2.0 in x 19 ga 51 mm x 19 ga |
| Hoist Assembly | Manual | Manual |
| Standard Gas Input Range | 20-30 psig | 20-30 psig |
| Gas Input Range with Optional Pressure Reducing Regulator | 30-160 psig | 30-160 psig |
| Heating Device Specs | ||
| Model Number | 18103A | N/A |
| Outside Dimensions (w x d x h) |
10.0 x 8.375 x 3.5 in 25.4 x 21.3 x 7.6 cm |
N/A |
| Total Wattage | 180 W | N/A |
| Temperature Range | Room temp - 130 °C | Ambient |
| Temperature Controller Type | Digital Electronic with LED Display |
N/A |
| Controller Accuracy | +/- 2 °C | N/A |
RESOURCES
ACCESSORIES
-
Pressure reducing regulator, 30-160 psi in, 0-30 psi out
-
Pasteur pipette adapters (cat# NA0636)
-
15 position conversion kit
-
96 well plate conversion kit
-
Various needles sizes and gauges
