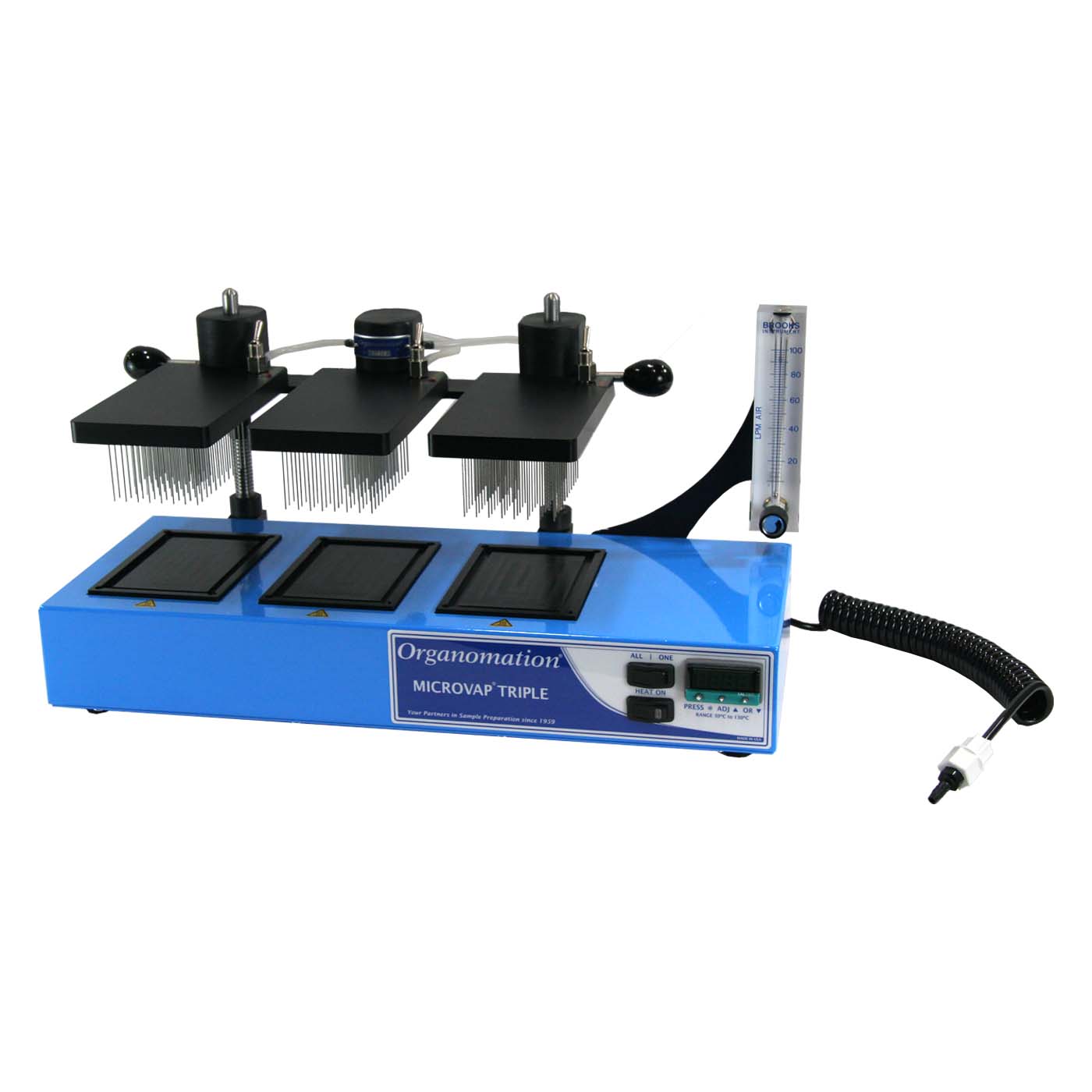

MICROVAP
Triple Microplate Evaporator
DESCRIPTION
The triple plate MICROVAP microplate evaporator combines three 96 needle manifolds and three heat blocks into a single platform. This allows for simultaneous evaporation of up to three 96 well plates. The triple plate MICROVAP’s solid aluminum heating units provide consistent temperature for uniform evaporation rates throughout all three plates.
Each 96-needle manifold is equipped with its own toggle switch to shut down gas flow when all three microplates are not in use to conserve nitrogen gas, saving laboratories money. A convenient dual band spring hoist assembly ensures ease of use for the operator when lowering and raising the needle manifolds. The digital temperature controller is easy to read and allows temperature to be controlled with an accuracy of +/- 2 °C up to the maximum temperature of 130°C. An adjustable 0-100 LPM flow meter is for precise control over the nitrogen gas delivery system.
High Throughput
Evaporate up to three 96 well plates at once
Ease of Use
Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
Precise
Digital controls allow exact temperature regulation
Cost-Effective
Conserve nitrogen by turning gas flow on and off at each plate
STANDARD FEATURES
-
Adjustable flow meter
-
Digital temperature control
-
High temperature limit switch
-
High pressure tubing
-
2-inch x 19-gauge needles
-
Nitrogen filter
-
Anodized aluminum dry block
OPTIONS(Add to main Cat# when purchasing)
-
220v wiring harness (Option Code -2), Cat# 11803-2
-
Z-Purge/positive pressure purge case (Option Code -Z), Cat# 11803-Z
- Acid resistant coating on instrument and needles (Option Code -RT), Cat# 11803-RT
SPECS
| Instrumental Name | 12p N-EVAP |
| Heater Type | Dry block |
| Instrument Catalog Number | 11803 |
| Number of Sample Plates | 3 |
| Overall Dimension (w x d x h) | 21.0 x 13.0 x 13.0 in 53.3 x 33.02 x 33.02 cm |
| Gas Manifold Layout | Triple 8 x 12 Array |
| Center to Center Spacing Between Positions |
0.354 in 9.0 mm |
| Microplate Dimensions (w x d) |
3.375 x 5.0 in 8.5 x 13 cm |
| Gas Flow Control | Single toggle valve |
| Gas Flow Meter Range | 0-100 L/min |
| Stainless Steel Needles (Length & Gauge) |
2.0 in x 19 ga 51 mm x 19 ga |
| Hoist Assembly | Dual Band Spring Hoist Assembly |
| Standard Gas Input Range | 30 psig |
| Gas Input Range with Optional Pressure Reducing Regulator | 30-160 psig |
| Heating Device Specs | |
| Model Number | 54243 |
| Outside Dimensions (w x d x h) |
24.0 x 9.5 x 3.0 in 61.0 x 22.9 x 7.6 cm |
| Total Wattage | 540 W |
| Temperature Range | 40-130 °C |
| Temperature Controller Type | Digital Electronic with LED Display |
| Controller Accuracy | +/- 2 °C |
RESOURCES
ACCESSORIES
-
Pressure reducing regulator, 30-150 psi in, 0-30 psi out
