Zero Air Generators for Analytical Chemistry

Zero air generators are sophisticated devices designed to produce ultra-pure air for use in analytical instruments. These generators remove hydrocarbons, moisture, and other contaminants from ambient air, producing a consistent supply of high-purity "zero air". The term "zero air" refers to air that is free from impurities that could interfere with analytical measurements, typically containing less than 0.1 parts per million (ppm) of total hydrocarbons.

For analytical chemists, the importance of zero air generators cannot be overstated. These devices ensure a reliable, on-demand source of pure air, which is crucial for:

- Maintaining baseline stability in chromatography

- Providing carrier gas for various analytical techniques

- Serving as a fuel source for flame ionization detectors (FID)

- Supporting oxidation processes in total organic carbon (TOC) analyzers

By eliminating the variability and potential contamination associated with compressed gas cylinders, zero air generators contribute significantly to the accuracy and reproducibility of analytical results.

Core Technology and Components

Zero air generators employ a multi-stage purification process to transform ambient air into ultra-pure zero air. The core components typically include:

1. Air compressor: Draws in ambient air and pressurizes it for the purification process.

2. Particulate filters: Remove dust and large particles from the incoming air.

3. Catalytic oxidation chamber: Converts hydrocarbons to carbon dioxide and water.

4. Moisture removal system: Typically uses a desiccant or membrane technology to remove water vapor.

5. Final filtration: Ensures removal of any remaining particulates or contaminants.

Purification Process Explained

The purification process in a zero air generator follows these steps:

1. Air intake: Ambient air is drawn into the system through an intake filter.

2. Compression: The air is compressed to the required pressure for efficient purification.

3. Initial filtration: Particulate filters remove dust and large contaminants.

4. Catalytic oxidation: The air passes through a heated catalyst bed, typically platinum or palladium, which oxidizes hydrocarbons to CO2 and H2O.

5. Moisture removal: A drying stage removes water vapor, often using pressure swing adsorption (PSA) technology or selective permeation through membranes.

6. Final purification: The air undergoes a final filtration step to remove any remaining impurities.

7. Quality control: Sensors monitor the output to ensure consistent purity levels.

This process results in zero air with typical purity levels of less than 0.1 ppm total hydrocarbons and dewpoints as low as -70°C.

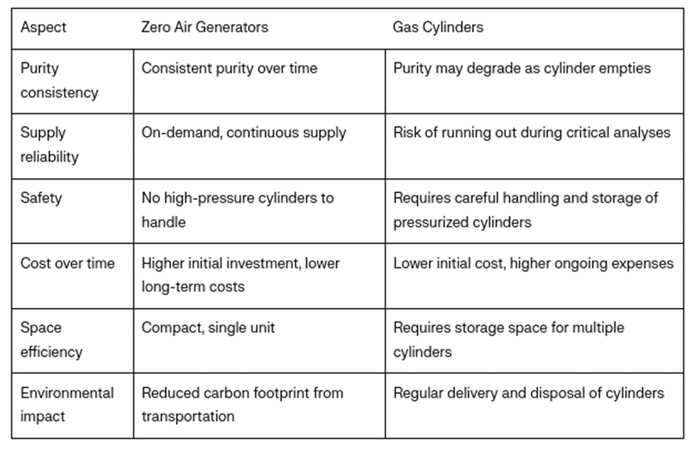

Zero air generators offer several advantages over traditional compressed gas cylinders:

Learn more: Comparing Zero Air Generators to Compressed Gas Cylinders

Improved Analytical Accuracy and Precision

Zero air generators significantly enhance the accuracy and precision of analytical measurements by:

Eliminating baseline drift: Consistent purity reduces fluctuations in chromatographic baselines, improving peak integration and quantitation.

Learn more: Challenges in Maintaining Air Quality for Analytical Instruments
Learn more: The Importance of Ultra-Pure Air in Analytical Chemistry

Reducing background noise: Ultra-pure air minimizes background interference, enhancing signal-to-noise ratios in sensitive analyses.

Ensuring reproducibility: A stable supply of zero air contributes to more consistent results across multiple analyses and between different operators.

Cost-Effectiveness Over Time

While the initial investment in a zero air generator may be higher than purchasing gas cylinders, the long-term cost savings are substantial:

Elimination of cylinder rental fees: No more ongoing costs for cylinder rentals or deposits.

Reduced labor costs: Staff time for ordering, changing, and managing cylinders is eliminated.

Lower price per volume of gas: The cost per liter of zero air is significantly lower when generated on-site compared to cylinder-supplied gas.

Enhanced Laboratory Safety

Zero air generators contribute to a safer laboratory environment by:

Removing high-pressure cylinders: Eliminates the risk of cylinder tipping or valve damage.

Reducing manual handling: No need for staff to move heavy cylinders, decreasing the risk of injury.

Minimizing gas leaks: On-site generation reduces the risk of undetected gas leaks from cylinders or supply lines.

Reduced Environmental Impact

The use of zero air generators aligns with sustainable laboratory practices:

Lower carbon footprint: Eliminates the need for regular cylinder deliveries and collections, reducing transportation-related emissions.

Reduced waste: No empty cylinders to dispose of or return.

Energy efficiency: Modern generators are designed for optimal energy use, often consuming less power than the energy required to produce and transport cylinder gas.

By providing these benefits, zero air generators have become an integral part of many analytical chemistry laboratories, supporting both the quality of scientific work and operational efficiency.

Zero air generators play a crucial role in various analytical techniques, enhancing the performance and reliability of several key applications:

Gas Chromatography

In gas chromatography (GC), zero air serves multiple functions:

Carrier gas: While not as common as helium or nitrogen, zero air can be used as a carrier gas for certain applications.

FID fuel: Zero air is essential as the oxidizer in flame ionization detectors, ensuring a clean, stable flame for consistent detection.

Make-up gas: It's often used as a make-up gas to maintain consistent flow rates through detectors.

The use of high-purity zero air in GC applications results in lower background noise, improved sensitivity, and more reliable quantitative analyses.

Learn more: Optimizing Air Quality in Gas Chromatography

Liquid Chromatography-Mass Spectrometry (LC-MS)

In LC-MS systems, zero air is critical for:

Nebulization: It assists in the formation of fine droplets in electrospray ionization (ESI) sources.

Desolvation: Zero air aids in the evaporation of solvent from ionized droplets.

Curtain gas: In some interfaces, it acts as a barrier to prevent neutralization of ions.

The purity of zero air is crucial in LC-MS to minimize background interference and maintain high sensitivity for trace analysis.

Total Organic Carbon (TOC) Analysis

TOC analyzers rely on zero air for:

Oxidation: As a source of oxygen for the combustion of organic compounds.

Carrier gas: To transport CO2 from the oxidation chamber to the detector.

High-purity zero air ensures complete oxidation of organic compounds and prevents the introduction of extraneous carbon, which could skew results.

Flame Ionization Detection (FID)

FID is widely used in various analytical instruments, and zero air is essential for:

Flame support: It provides the oxygen necessary for maintaining a stable hydrogen flame.

Sample oxidation: Ensures complete combustion of organic compounds for detection.

The use of ultra-pure zero air in FID applications results in lower background signals, improved detection limits, and enhanced overall detector performance.

Choosing the appropriate zero air generator is crucial for optimal laboratory performance. Consider the following factors:

Capacity and Flow Rate Considerations

Peak demand: Calculate the maximum flow rate required when all instruments are operating simultaneously.

Duty cycle: Consider whether the demand is continuous or intermittent.

Future needs: Allow for potential expansion of analytical capabilities.

A generator with 20-30% excess capacity over current needs is often recommended to accommodate future growth.

Purity Requirements for Different Applications

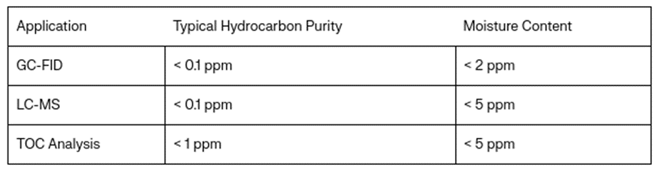

Ensure the selected generator meets or exceeds the purity requirements of your most demanding application.

Space and Installation Factors

Footprint: Consider the available laboratory space for the generator.

Noise levels: Evaluate the acoustic output, especially if the unit will be placed in the main lab area.

Ventilation: Ensure adequate ventilation to dissipate heat generated by the unit.

Power requirements: Check that your lab's electrical supply can support the generator's needs.

Maintenance and Operating Costs

Filter replacement: Factor in the frequency and cost of filter changes.

Energy consumption: Compare the power efficiency of different models.

Service intervals: Consider the manufacturer's recommended service schedule and associated costs.

Warranty: Evaluate the warranty terms and the availability of local service support.

To maximize the performance and longevity of your zero air generator, follow these best practices:

Proper Installation and Setup

Location: Install in a clean, dry area with good ventilation and minimal temperature fluctuations.

Inlet filtration: Use high-quality inlet filters to protect the generator from particulates.

Connections: Ensure all gas connections are leak-free using appropriate fittings and tubing.

Pressure regulation: Install pressure regulators to maintain stable output pressure to instruments.

Regular Maintenance Procedures

Filter replacement: Adhere to the manufacturer's schedule for replacing air intake and output filters.

Catalyst check: Periodically verify the performance of the catalytic oxidation chamber.

Leak tests: Regularly check for leaks in the gas delivery system.

Calibration: If equipped with purity sensors, ensure they are calibrated according to the manufacturer's recommendations.

Troubleshooting Common Issues

Decreased purity: Check for breakthrough in filters or catalyst degradation.

Reduced flow rate: Investigate for blockages in filters or restrictions in the delivery system.

Unusual noise: Address any changes in operational sound promptly, as they may indicate mechanical issues.

Moisture carryover: Examine the drying system for failures if moisture is detected in the output.

Optimizing Performance for Specific Instruments

Pressure matching: Adjust output pressure to match the requirements of each analytical instrument.

Dedicated lines: Use separate supply lines for instruments with different purity or flow requirements.

Purge procedures: Implement proper purging protocols when connecting new instruments to eliminate potential contamination.

By following these guidelines, laboratories can ensure their zero air generators operate at peak efficiency, supporting the accuracy and reliability of their analytical processes.

The field of zero air generation is continuously evolving, with new innovations enhancing performance, efficiency, and user experience.

Latest Innovations in Purification Methods

Recent advancements in purification technology have led to significant improvements in zero air generators:

Advanced catalysts: New catalyst formulations offer improved hydrocarbon removal efficiency and longer operational life.

Membrane technology: Novel membrane materials provide more effective moisture removal with lower pressure drops.

Pressure swing adsorption (PSA): Refined PSA systems offer enhanced purification with reduced energy consumption.

Hybrid systems: Combinations of catalytic oxidation and PSA technology yield higher purity levels and improved efficiency.

Integration with Laboratory Information Management Systems (LIMS)

Modern zero air generators are increasingly designed to interface with LIMS, offering several benefits:

Real-time monitoring: Continuous tracking of generator performance and output quality.

Automated record-keeping: Maintenance schedules, purity levels, and usage data are automatically logged.

Predictive maintenance: AI-driven systems can predict when maintenance is required based on usage patterns and performance metrics.

Resource optimization: Integration with LIMS allows for better planning of gas usage across multiple instruments and experiments.

Smart Features and Remote Monitoring Capabilities

The latest generation of zero air generators incorporates smart features that enhance usability and reliability:

Touchscreen interfaces: User-friendly displays provide easy access to operational data and settings.

Remote monitoring: Web-based interfaces allow users to check generator status and receive alerts from anywhere.

Smartphone apps: Dedicated applications provide real-time updates and control capabilities.

Predictive diagnostics: Advanced algorithms can detect potential issues before they affect performance.

Auto-shutdown: Safety features automatically shut down the system in case of critical failures or emergencies.

Zero air generators contribute significantly to laboratory sustainability efforts:

Reduced Carbon Footprint Compared to Cylinder Gas

Transportation elimination: On-site generation removes the need for regular cylinder deliveries, reducing associated CO2 emissions.

Lifecycle analysis: Studies show that the carbon footprint of zero air generators is substantially lower than that of cylinder gas over their operational lifetime.

Energy Efficiency Considerations

Modern zero air generators are designed with energy efficiency in mind:

Low power modes: Generators can adjust output based on demand, reducing energy consumption during periods of low use.

Heat recovery systems: Some advanced models utilize waste heat for other laboratory processes.

Energy-efficient components: Use of high-efficiency compressors and low-energy purification technologies minimizes power consumption.

Contribution to Green Laboratory Initiatives

Zero air generators align well with green laboratory practices:

Waste reduction: Eliminates the need for cylinder disposal or recycling.

Space optimization: Frees up valuable laboratory space previously used for cylinder storage.

Chemical reduction: Reduces reliance on chemical scrubbers for air purification in some applications.

Adherence to regulatory standards is crucial in analytical chemistry. Zero air generators play a role in maintaining compliance:

Relevant Industry Standards

ISO 8573: Specifies purity classes for compressed air, which zero air generators must meet or exceed.

ASTM D1835: Defines standards for fuel gases, including those used in analytical instruments.

USP Chapter 1217: Outlines gas generation for pharmaceutical use, including requirements for zero air.

Compliance with Laboratory Accreditation Requirements

Zero air generators can help laboratories meet accreditation standards:

ISO/IEC 17025: Assists in meeting general requirements for the competence of testing and calibration laboratories.

Good Laboratory Practice (GLP): Supports compliance with GLP principles by ensuring consistent gas quality.

FDA 21 CFR Part 11: Some generators offer features that support compliance with electronic records requirements.

Documentation and Traceability Considerations

Proper documentation is essential for regulatory compliance:

Calibration certificates: Generators should come with calibration certificates traceable to national standards.

Maintenance logs: Automated logging of maintenance activities supports audit trails.

Purity monitoring: Continuous monitoring and recording of gas purity levels ensure traceability.
